Pro-grade 3D Scanner - EinScan Rigil

EinScan Rigil is the world's first Tri-Mode 3D scanner to integrate a built-in data processing PC, wireless connectivity, and Hybrid Light scanning technology. Featuring 50 laser lines with markerless scanning capabilities, it delivers an accuracy of 0.04 mm. EinScan Rigil offers a seamless wireless 3D scanning experience with three flexible operation modes that allow it to work alongside a PC or operate independently, redefining the application potential of 3D scanning devices for professional users and creative engineering companies.

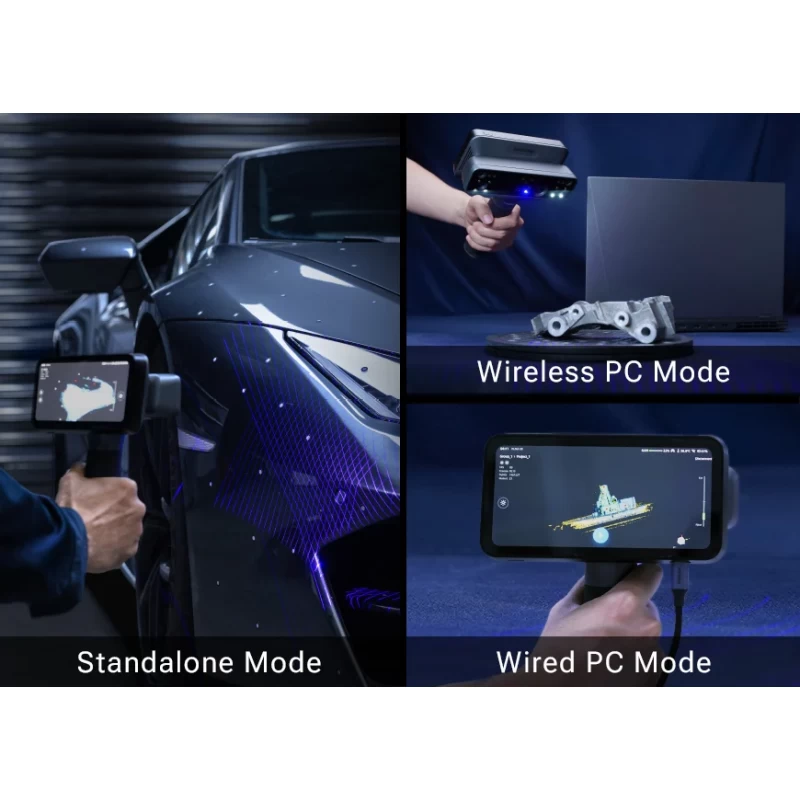

Triple Work Modes
The EinScan Rigil Series offers three operation modes to unlock max performance and flexibility.

Standalone Mode: No PC connection required, all scanning and processing tasks are completed directly on the hardware.

Wireless PC Mode: Leveraging built-in Wi-Fi 6, enables seamless wireless scanning and allows connection to a powerful computer, optimizing performance for complex tasks and large data volumes.

Wired PC Mode: Maintaining availability, maximum scanning speed, and data volume in complex network environments.

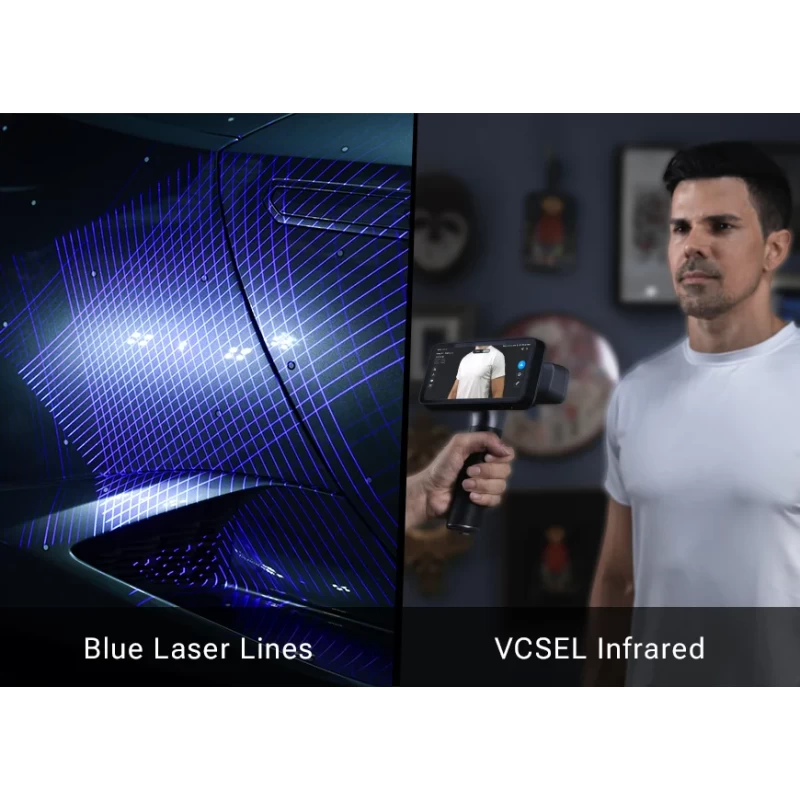

Hybrid Light Source
2 separate groups of cameras are specifically designed to capture different light sources respectively.
- Blue laser lines
- VCSEL infrared

Laser HD Mode
Provides high-quality models with up to 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm.

- 25 + 25 crossed laser lines (Rigil) / 17 + 17 crossed laser lines (Rigil Lite): for high speed scanning, delivers top-tier efficiency and flexibility.
- 7 parallel laser lines: for fine details, provides consistent results.

Dynamic Laser Switching
Two laser scan modes can be switched during the scanning process, and the data can be merged to achieve speed and detail in one scanning project.

IR Rapid Mode
- VCSEL Infrared-powered scanning solution for high efficiency and wide coverage of medium to large objects.
- Volumetric accuracy up to 0.1 + 0.3 mm/m
- Working distance 160 ~ 1500 mm
- Scanning speed up to 16,000,000 points/s

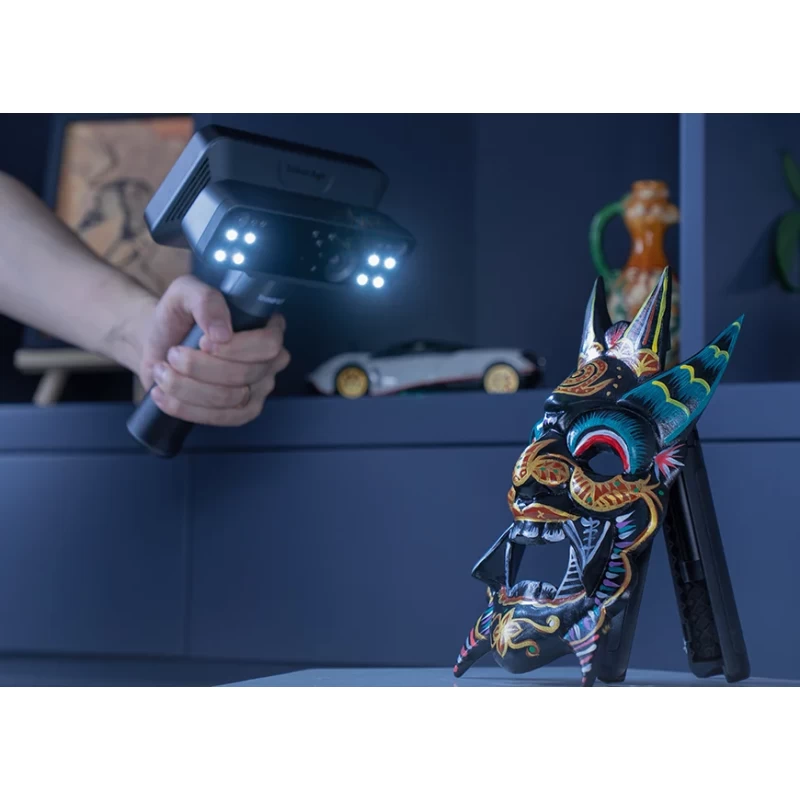

Marker-Free Laser Scanning
EinScan Rigil features a special tracking algorithm, which provides marker-free blue laser scanning through a Laser + IR hybrid scan mode currently available in EXScan Rigil software. This enables better efficiency than traditional marker-based laser scanning and better data quality than marker-free IR scanning.

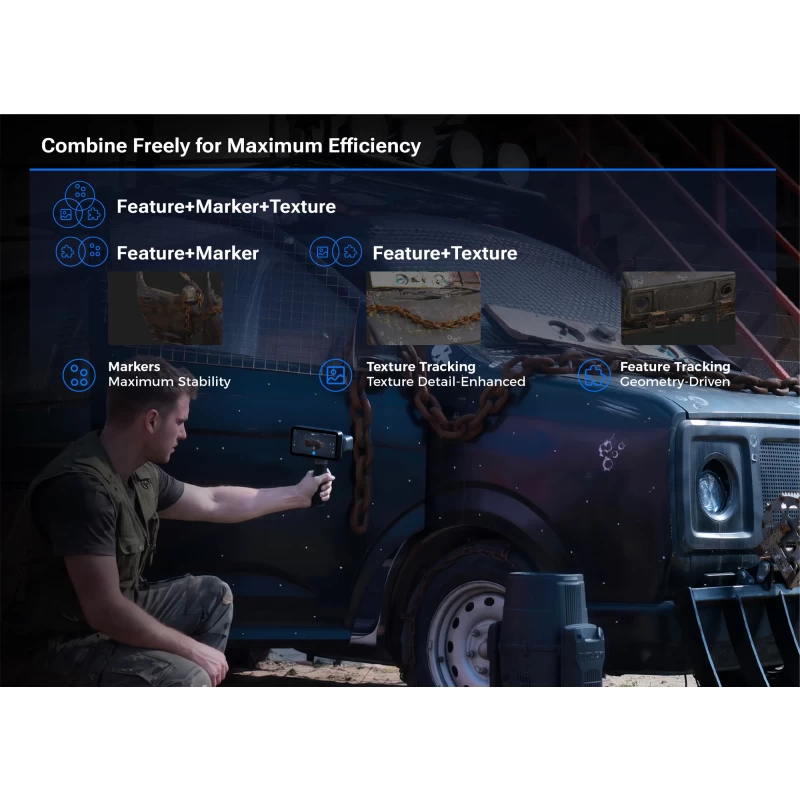

Advanced Multi-Tracking Mode (IR & Laser)
Combine freely for maximum efficiency

- IR Mode: Feature / Marker / Texture (freely combinable) / Global Markers
- Laser Mode: Feature / Marker / Global Markers

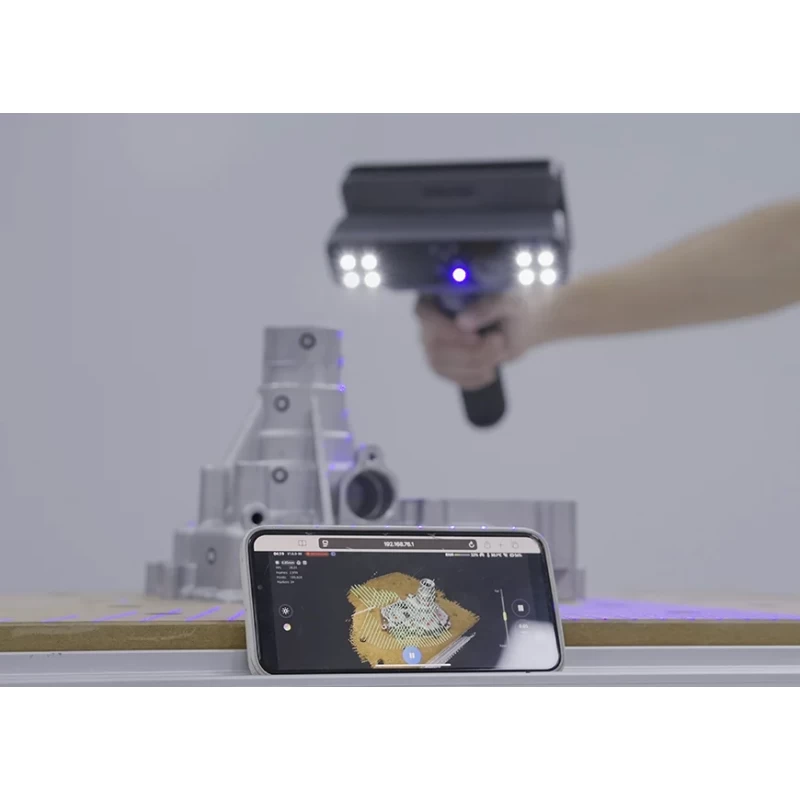

Wireless Workflow
- Wireless scanning: Without connecting to PC
- Wireless transfer: Data sharing to SHINING 3D Cloud
- Wireless screen casting: Display on a second screen

Reliable Scanning from Workshop to Outdoors
- Working efficiently in sunlight outdoors.
- Adaptable for dark and reflective metal surfaces without spray.

Powerful Hardware
- 6.4'' 2K AMOLED
- 32GB LPDDR5
- 64GB eMMC + 1TB SSD ROM
- 5500mAh × 2 Replaceable Batteries
