Continuous Transfer Type Cationic Electrodeposition Coating Line | Compatible with Long Parts up to Approx. 550 x 1,000 x 200mm

Ohashi Iron Works Vietnam possesses a continuous conveyor-type cationic electrodeposition coating line capable of handling long parts up to approximately 550×1,000×200mm. It continuously conveys parts from pre-treatment to electrodeposition coating, efficiently processing mass-produced items.

■ Overview

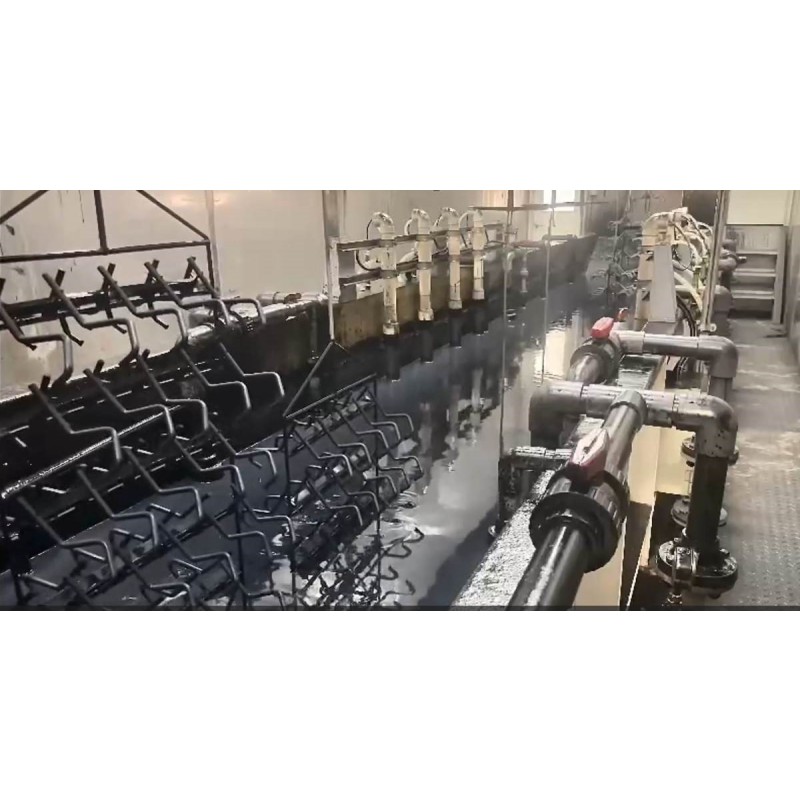

Ohashi Iron Works Vietnam (OTV) operates a cationic electrodeposition coating line that continuously conveys hangers via a conveyor. Products are set on hangers and continuously transported through each process, from pre-treatment to electrodeposition coating. This line configuration allows for the continuous feeding of hangers, enabling efficient processing of mass-produced items.

Furthermore, the maximum compatible size for coated objects is approximately 550×1,000×200mm, accommodating not only small parts but also long parts in the 1,000mm class.

■ Features

· Supports mass production with a continuous conveyor system

· Maximum compatible size: approx. 550×1,000×200mm

· Also accommodates long parts in the 1,000mm class

· Integrated processing from pre-treatment to electrodeposition coating

■ Supports Mass Production with Continuous Conveyance

On OTV's line, a conveyor continuously moves, transporting products to each processing stage.

Multiple products are set on hangers and continuously conveyed through pre-treatment, phosphating, electrodeposition coating, and post-processes. Unlike systems where hangers are raised and lowered for each batch, hangers can be continuously fed, which is a key feature for efficiently processing mass-produced items.

■ Accommodates Long Parts up to Approximately 550×1,000×200mm

The maximum compatible size for coated objects is approximately 550×1,000×200mm.

In addition to small parts, long parts in the 1,000mm class can be hung on hangers and processed on the continuous line. We can consult with you regarding cationic electrodeposition coating for various conductive metal products, including automotive parts, motorcycle parts, home appliances, electronic components, industrial equipment, agricultural machinery, and steel furniture.

※Compatibility may vary depending on product shape, weight, hanging method, etc.

■ Integrated Line Configuration from Pre-treatment to Electrodeposition Coating

In cationic electrodeposition coating, not only the coating process but also surface treatment before coating is crucial. At OTV, products set on hangers are conveyed by a conveyor, passing through pre-treatment processes such as phosphating, and then directly sent to the electrodeposition coating process.

By connecting each process as a single line, mass-produced items are continuously processed under consistent process conditions.

■ Balancing Mass Productivity and Quality Control

At OTV, we are committed not only to mass productivity through continuous conveyance but also to management aimed at maintaining stable coating quality. By combining in-process quality control measures such as preventing foreign matter generation, preventing intrusion into the paint tank, and regular cleaning, we strive for stable cationic electrodeposition coating quality.

OTV's cationic electrodeposition coating is characterized by "long parts × continuous conveyance × mass production support," accommodating coated objects up to approximately 550×1,000×200mm. It continuously conveys parts from pre-treatment to electrodeposition coating, achieving both mass productivity and in-process quality control.

If you are considering cationic electrodeposition coating in Vietnam, or coating for long parts and mass-produced items, please contact Ohashi Iron Works Vietnam.

■ For more details, please download the PDF or feel free to contact us.
