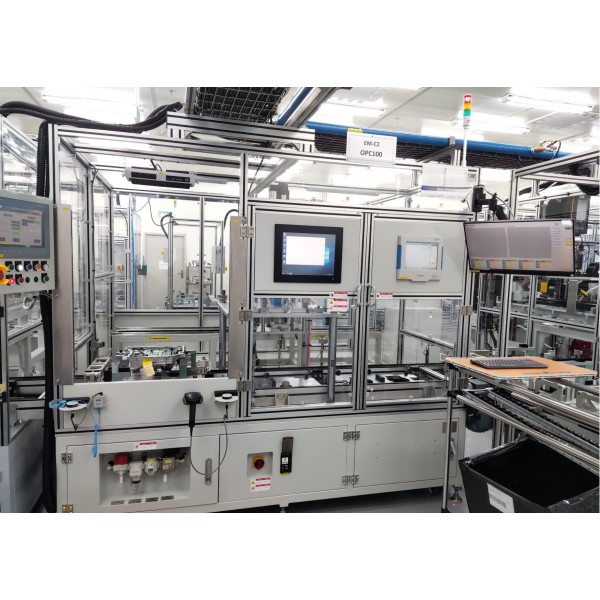

OPC
IGBT (Insulated Gate Bipolar Transistor) is an essential component in the electronics manufacturing industry. IGBTs play a crucial role in high-power electronic devices such as electric vehicles, solar power generation systems, and industrial equipment, making quality and precision in IGBT substrate manufacturing extremely important. Equipped with advanced technologies such as a 5kN Kistler servo press, high-precision control of pressing force and stroke, pin inspection before and after pressing using Cognex cameras, and an MES data management system, this device significantly contributes to ensuring product quality and optimizing production processes.
Specifications:
Voltage: Three-phase 380V, 50Hz
Air Pressure: 0.4~0.6 Mpa
Maximum Pressing Force: 5kN
Set Pressing Force: 2.88kN
Stroke: 200mm
Positional Tolerance after Pressing: ±0.1mm
Cycle Time: 81 seconds/product
Pressing Device: Kistler
Device Dimensions (Length × Width × Height): 2350×2165×2100 mm
Automobile (mass production) / Auto electrical parts / Machine tools
