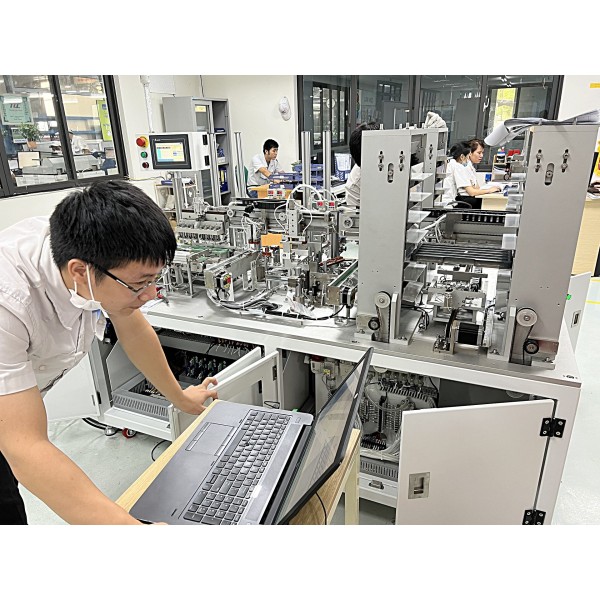

product testing machine (product testing machine)
一般原則
B1: The operator loads the fixture containing products onto Conveyor 1.
B2: Transfer 1 moves the jig to Positions A1-2, B. Characteristics are checked at Position A1. A2 checks Hipot.
B3: Transfer 2
If Product OK picks up the product from Position B to Position C.
If Product NG picks up the product from Position B, it is loaded onto Conveyor 3.
Transfer 3 pushes the empty jig from Position B to Position F.
Transfer 4 moves the empty jig from Position F to Conveyor 2 => returns to Position G.
B4: Transfer 5 picks up the product from Position C to Position D and from Position D to E.
At Position D, a camera checks for product errors.
B5: Transfer 6
If the product is NG, Transfer 6 picks up the product from Position E and drops it onto Conveyor 4.
If the product is OK, 6 picks up the product from Position E and drops it at Position H.
