3D Scanner - FreeScan Combo Series

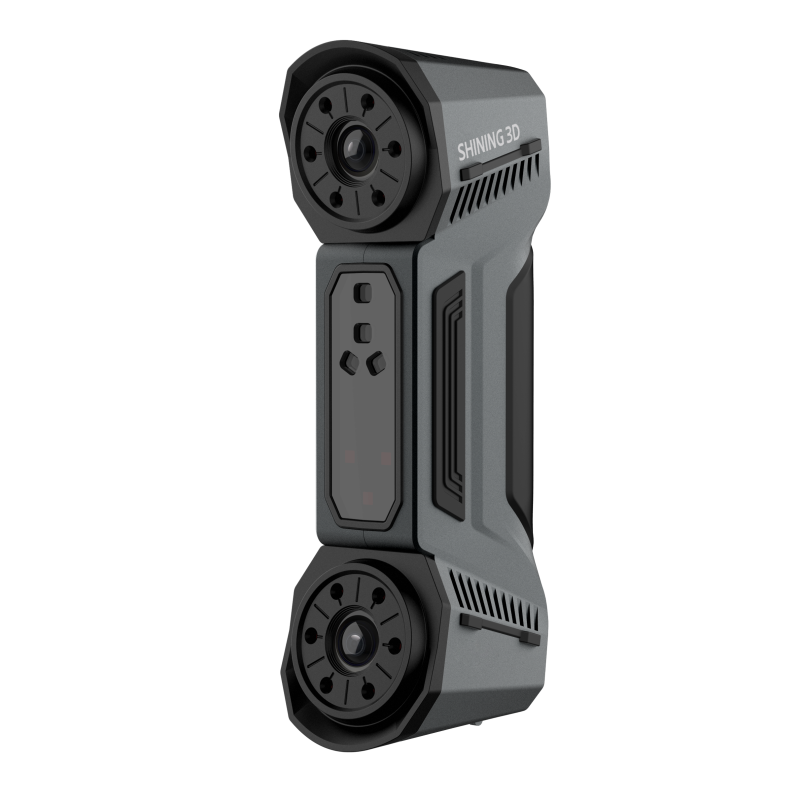

Compact and Powerful Metrology
Packs dual light sources in an ultra-compact shell, measuring just 193 x 63 x 53 mm. It's equipped with both blue laser and infrared VCSEL technology and weighs only 620g.

Certified Metrology Accuracy
Verified against VDI/VDE 2634 and ISO 10360 standards in our ISO 17025 accredited lab to ensure traceable 0.02 mm precision and consistent results.

Versatile Dual Light Scanning
An innovative combination of blue laser and infrared light sources meets the needs of diverse industrial 3D scanning scenarios.

Multiple Scanning Modes
Up to 50 laser lines to scan large objects quickly, 7 parallel laser lines to scan fine details, and a single laser line for deep hole and pocket area scanning.

Lightweight and Compact
The lightweight and ergonomic design of the Combo Series allows for use in a variety of narrow and complex environments.

Blue Laser & Infrared Light
An innovative combination of blue laser and infrared light ensures accurate results in various scenarios, improving both efficiency and quality.

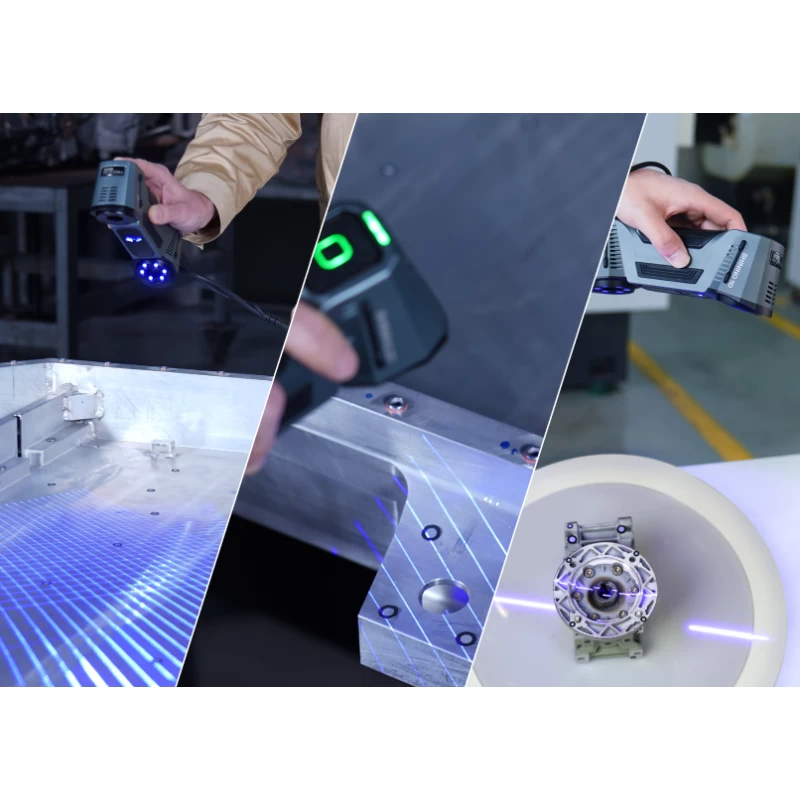

Four 3D Scanning Modes to Cover All Types of Workpieces
- Multiple-line mode with 26 (FreeScan Combo) or 50 (FreeScan Combo+) laser lines for overall scans
- Fine scanning mode with 7 parallel laser lines to acquire intricate details
- Deep hole scanning mode with 1 single laser line
- Infrared light mode for quick scans without markers

A Wise Choice for Metrology
The FreeScan Combo Series' laser scanning modes can achieve industrial-grade accuracy of 0.02 mm*, making it ideal for metrology applications.

*Based on VDI/VDE 2634 and ISO 10360, sphere-spacing error is assessed with traceable length artifacts and markers by measuring these at different locations and orientations within the working volume, in the accuracy lab certified with ISO/IEC 17025 under environmental conditions: temperature 20 ± 0.5°C; humidity 40 ~ 60% RH.

Fast Scan Speed
It's multiple line mode projects up to 50 laser lines (FreeScan Combo + version) and scan at speeds of up to 3,600,000 points/sec

Powerful and Ergonomic
The FreeScan Combo Series boasts an ergonomic, compact, and lightweight design that makes 3D scanning convenient and easy.

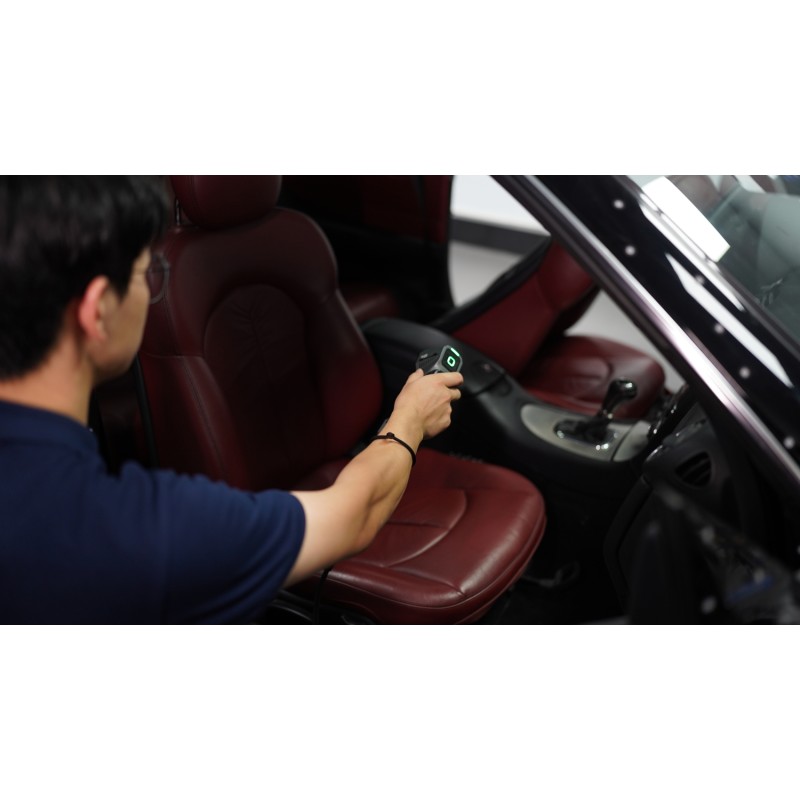

The optimized camera angle makes it more suitable for working in narrow and complex environments, allowing for fast data capture in seams.

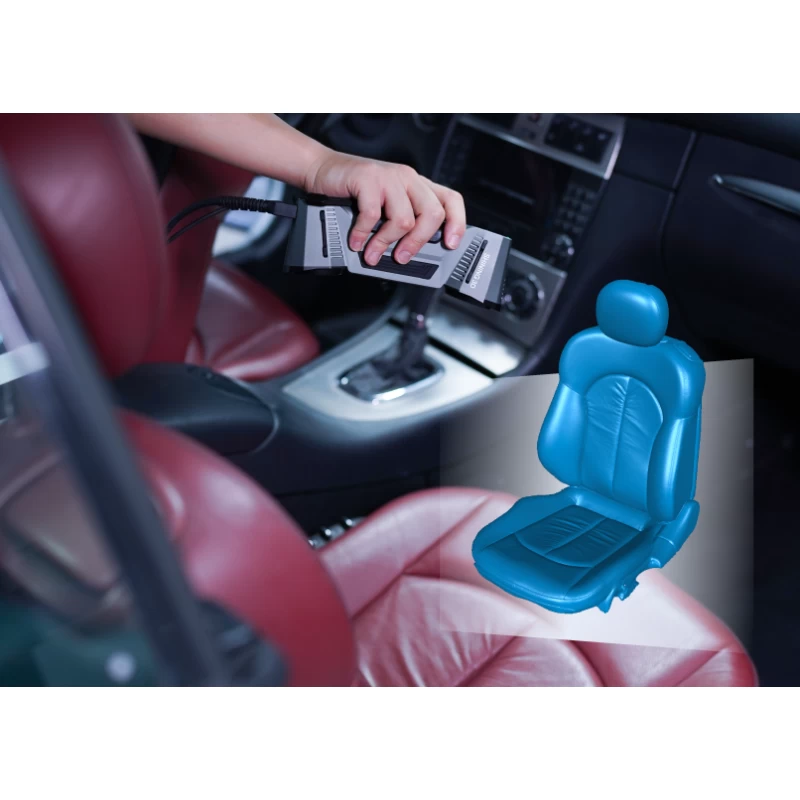

Infrared Light Scanning
For feature-rich workpieces, the infrared light scanning mode is ideal. It captures parts quickly and efficiently without the need for markers.

WorldSkills Designated Competition Model
FreeScan Combo Series is designated as the official model for the Mechanical Engineering CAD Skill in WorldSkills Competitions.

It supports competitors in rapidly capturing complex geometries and transforming them into precise digital models for engineering analysis and design.
